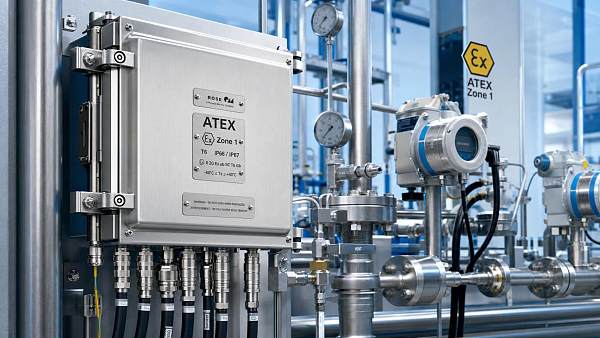

Zone 1 ATEX Enclosure Requirements and Common Spec Mistakes

A Zone 1 atex enclosure sits in a difficult space between regulation, process safety, and asset reliability. It is rarely a passive housing choice. In hazardous areas where explosive gas atmospheres may occur during normal operation, enclosure specification shapes compliance exposure, maintenance burden, shutdown risk, and long-term operating cost.

That is why early specification errors matter more than many project teams expect. The weak points are usually not dramatic design failures. They are quieter issues such as incomplete certification scope, mismatched temperature class, unsuitable materials, or cable entries that break the intended protection concept.

Why Zone 1 enclosure decisions carry wider business risk

Across energy sites, chemical processing lines, aerospace support systems, and advanced manufacturing plants, hazardous area equipment is under closer scrutiny than before. Audits now look beyond a nameplate. They examine how a Zone 1 atex enclosure performs in the real installation, with the actual components, glands, seals, ambient conditions, and service routines.

This broader view matches the way G-CSE approaches industrial benchmarking. In critical environments, technical value comes from verifiable alignment between materials, standards, and operating conditions. A compliant enclosure on paper can still become a procurement liability if its installation assumptions do not match the site reality.

For that reason, enclosure selection now belongs in risk review, not only in catalog comparison. The enclosure touches ignition prevention, corrosion resistance, ingress protection, inspection frequency, spare parts planning, and even project handover quality.

What a Zone 1 atex enclosure actually needs to address

A Zone 1 atex enclosure is intended for an area where an explosive gas atmosphere is likely during normal operation. That single definition already changes the engineering threshold. Equipment cannot rely on occasional exposure assumptions. It must be designed and certified for a more demanding hazard profile.

In practice, the enclosure requirement is never just about the box itself. It includes the protection method, the installed devices, terminals, operator interfaces, viewing elements, cable glands, stopping plugs, and the final assembled configuration.

Core specification dimensions

• ATEX equipment category and marking appropriate for Zone 1 gas hazards.
• Protection concept such as Ex d, Ex e, Ex p, or hybrid assembly rules.
• Gas group compatibility, especially when IIC conditions are possible.
• Temperature class based on worst-case heat generation and ambient range.
• Ingress protection suitable for washdown, dust, offshore spray, or condensation.
• Material resistance to corrosion, solvents, UV exposure, or process chemicals.
• Mechanical integrity under vibration, impact, and access cycles.
• Documentation package for installation, inspection, and modification control.

A robust Zone 1 atex enclosure selection balances these dimensions together. Isolating one variable, such as IP rating, often creates blind spots elsewhere.

The specification mistakes that appear most often

Most field problems start in procurement documents. The wording looks technically correct, but the scope is too narrow, too generic, or copied from a different hazard context.

Mistake 1: treating ATEX marking as complete proof of suitability

A certificate does not answer every application question. It confirms compliance within defined conditions. If the ambient temperature, internal heat load, gland type, or mounting orientation changes, the original assumption may no longer hold.

This is especially relevant when a Zone 1 atex enclosure is customized with terminals, heaters, instrumentation, HMIs, or power distribution elements. Assembly certification and component compatibility must remain intact after configuration.

Mistake 2: misunderstanding temperature class

Temperature class errors are common because surface temperature is often estimated too casually. Teams may focus on nominal device ratings and ignore enclosure solar gain, poor ventilation, adjacent heat sources, or startup peaks.

A Zone 1 atex enclosure that passes electrical function tests can still fail hazardous area suitability if the external surface temperature exceeds the allowed limit for the gas present.

Mistake 3: overvaluing IP rating and undervaluing real environment

IP66 or IP67 does not automatically mean durable service life. Saline exposure, aggressive cleaning agents, cyclic condensation, and gasket aging often matter more than the headline ingress rating.

In semiconductor utilities, offshore skids, and energy terminals, material selection can determine whether the enclosure remains serviceable after several maintenance cycles.

Mistake 4: specifying enclosure material without process chemistry review

Stainless steel is not automatically the right answer. Neither is GRP, aluminum, or coated carbon steel. Each option performs differently against chlorides, solvents, ultraviolet exposure, mechanical damage, and cleaning practices.

G-CSE’s cross-sector view is useful here because material science and hazardous area compliance cannot be separated. The best enclosure choice is often the one that reduces corrosion-driven inspection findings five years later.

Mistake 5: ignoring cable entries and field modifications

Many compliant assemblies lose integrity through cable glands, stopping plugs, drains, and site drilling. The enclosure body may be certified, yet the installed interface is not aligned with the protection method or gas group.

A Zone 1 atex enclosure should be specified with entry strategy in mind from the start. Retrofitted penetrations create both compliance and maintenance problems.

How requirements shift by industrial setting

The same enclosure concept does not behave the same way in every sector. Hazard classification may look similar, but surrounding process conditions change the right answer.

This is why a generic Zone 1 atex enclosure specification often underperforms. It may satisfy a tender line item while missing the environmental details that drive actual failure modes.

A more reliable way to evaluate enclosure options

The best evaluations start by testing the enclosure against the whole operating envelope, not just the compliance statement. That means looking at normal operation, upset conditions, maintenance access, and likely future modifications.

Questions worth answering before approval

• Is the certification valid for the final populated assembly or only the empty enclosure?
• What ambient range was used for the declared temperature class?
• Are cable glands, plugs, hinges, windows, and locks included in the certified concept?
• Does the material suit local chemicals, salt, UV, and cleaning routines?
• Can inspection and maintenance be performed without compromising protection integrity?
• What happens if devices are added later?

These questions reduce the gap between catalog compliance and installed compliance. They also improve bid comparison, because enclosure options can then be judged on verified equivalence rather than label similarity.

What to document before the specification is released

A practical specification for a Zone 1 atex enclosure should define more than a standard and an IP code. It should record the hazard basis, gas group, temperature class target, ambient range, material requirement, mounting context, entry arrangement, and any component heat loads.

It is also worth documenting which substitutions are acceptable and which are not. Without that discipline, later procurement changes can undermine the original safety case while still looking commercially attractive.

For projects spanning multiple regions or business units, a benchmarked review process helps. G-CSE’s value in this context is not promotional language. It is the ability to compare enclosure decisions against standards, adjacent industrial sectors, and evolving compliance expectations.

Closing perspective

A Zone 1 atex enclosure should be treated as a controlled engineering decision, not a commodity accessory. The right selection supports safety and uptime together. The wrong one usually fails quietly, through documentation gaps, thermal margin errors, material mismatch, or uncontrolled field changes.

The next useful step is to review current enclosure specifications against actual site conditions, especially certification scope, temperature assumptions, and cable entry details. That exercise often reveals more risk than another round of price comparison.
