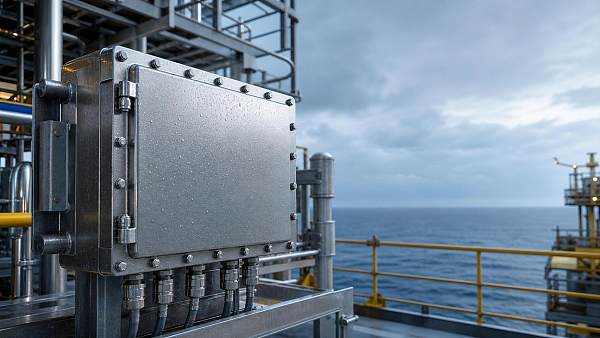

ATEX Enclosures Offshore: What Matters in Saltwater Service

ATEX Enclosures Offshore: What Matters in Saltwater Service

Selecting ATEX Enclosures offshore is not just about passing a certification audit.

In offshore saltwater service, the enclosure lives inside a constant stress cycle.

Salt spray, humidity, thermal swing, UV, shock, and vibration all work together.

That is why ATEX Enclosures offshore must be evaluated as a long-term system, not a catalog item.

The real issue is simple.

Which design, material, and sealing strategy can hold safety integrity under continuous marine exposure?

Why ATEX Enclosures Offshore Fail Earlier Than Expected

Many failures start long before the enclosure loses explosion protection.

Corrosion around hinges, cover bolts, drain points, and cable entries is often the first warning.

After that, sealing pressure drops, water ingress risk rises, and maintenance intervals shrink.

In practice, ATEX Enclosures offshore rarely fail because one parameter was ignored.

They fail because several moderate stresses keep accumulating at the same time.

A technically acceptable enclosure onshore may become a weak asset offshore within two service cycles.

The Main Offshore Stress Factors

• Chloride-driven corrosion from continuous salt deposition
• Condensation caused by day-night temperature fluctuation
• Mechanical vibration from compressors, skids, and rotating equipment
• Pressure washing and splash-zone exposure during maintenance
• UV degradation of external seals and polymer accessories
• Galvanic corrosion between dissimilar metals in fasteners and glands

This is why offshore hazardous-area selection needs more than checking Zone, gas group, and temperature class.

Material Choice: The First Filter for ATEX Enclosures Offshore

Material selection usually decides lifecycle cost faster than any other design choice.

For ATEX Enclosures offshore, corrosion resistance must be judged under real marine conditions.

That means looking beyond the base metal grade.

Surface treatment, weld quality, fastener compatibility, and coating repairability all matter.

Common Material Options and Their Tradeoffs

From a lifecycle view, 316L and high-grade non-metallic designs dominate many offshore use cases.

Still, the better option depends on mechanical load, enclosure size, and installed equipment heat.

Sealing Strategy Is Where Offshore Reliability Is Won or Lost

For ATEX Enclosures offshore, gasket design deserves much more attention than it usually gets.

A strong housing with a weak seal is still a weak enclosure.

Saltwater service attacks sealing in subtle ways.

Compression set, chemical aging, uneven clamping, and thermal cycling slowly reduce barrier performance.

What to Check in the Seal System

• Gasket material compatibility with salt, UV, oils, and cleaning agents
• Consistent compression around corners, hinges, and latch points
• IP rating retention after repeated opening and closing
• Breather or drain design for condensation control
• Cable gland sealing quality under vibration and thermal movement

This also affects hazardous-area safety in a practical way.

When moisture enters and stays trapped, terminals corrode and inspection findings multiply.

That creates avoidable downtime, even when the ATEX marking itself remains valid.

Mechanical Design Details That Matter Offshore

Offshore installations are hard on enclosure hardware.

Doors slam, mounts flex, and maintenance teams work with gloves, tools, and limited access.

So ATEX Enclosures offshore should be judged on serviceability as well as compliance.

A design that is hard to maintain usually becomes unreliable faster.

High-Value Design Features

1. Captured cover bolts that resist loss during field opening
2. Hinges and latches made from compatible corrosion-resistant alloys
3. External earthing points protected from corrosion buildup
4. Mounting systems that limit vibration transfer from structure to enclosure
5. Internal layout that keeps wiring clear of condensate paths

More evaluators are also looking at maintenance ergonomics during product review.

That is a useful shift, because offshore access cost often exceeds the enclosure price itself.

Certification Is Necessary, but Offshore Proof Requires More

ATEX certification is the baseline for explosive atmospheres in many offshore applications.

But ATEX Enclosures offshore should also be screened through a broader qualification lens.

Marine duty adds environmental demands that certification labels alone do not fully describe.

This is where technical evaluation becomes much more meaningful.

Useful Verification Points

• ATEX type and protection method fit for the installed device
• IP performance under washdown and salt spray conditions
• Third-party corrosion or salt mist test data
• Temperature rise behavior with real internal component loading
• Documented material traceability for body, fasteners, and glands
• Availability of inspection, spare seal kits, and field replacement procedures

A supplier that can show this data usually reduces lifecycle uncertainty in a measurable way.

How to Compare ATEX Enclosures Offshore for Real Projects

A good evaluation model balances compliance, durability, maintainability, and commercial risk.

That matters even more when comparing several approved vendors.

The most useful method is a scenario-based checklist linked to the exact offshore duty.

A Practical Comparison Framework

1. Define the zone classification, gas group, and ambient temperature envelope.
2. Map the enclosure position: open deck, sheltered module, splash zone, or indoor utility area.
3. Review body material, hardware alloy, gland metal, and coating compatibility together.
4. Check ingress protection with real cable entry configuration, not empty-box data.
5. Estimate service interval impact from gasket replacement, corrosion cleaning, and inspection access.
6. Compare total lifecycle cost, including offshore labor and shutdown exposure.

This approach gives a clearer answer than buying the highest-rated enclosure on paper.

It also exposes hidden risk in accessories, which is where many offshore problems begin.

Final Takeaway for Saltwater Service Selection

ATEX Enclosures offshore should be selected as marine safety assets, not generic electrical housings.

The strongest decisions usually come from three priorities.

Choose corrosion-resistant materials, validate the seal system, and confirm maintainability under offshore conditions.

When those three areas are aligned, hazardous-area compliance becomes much more durable in practice.

In real projects, that means fewer inspection findings, fewer premature replacements, and better uptime.

For any evaluation cycle, request evidence that matches offshore saltwater duty, not only standard certification sheets.

That is the most reliable path to selecting ATEX Enclosures offshore that continue performing after installation, not just at handover.
