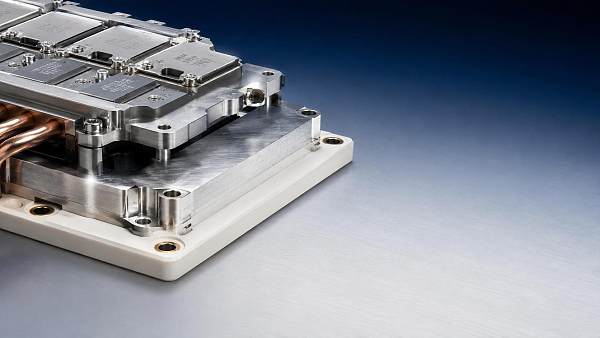

When do aerospace thermal management solutions require alumina ceramics?

Alumina ceramics are required in aerospace thermal-management assemblies when heat removal cannot be separated from electrical insulation, dimensional stability, or environmental resistance. They are not a universal replacement for metals. Their value appears where an aluminium, copper, stainless-steel, or polymeric component may meet one requirement but fails another: a metal conducts heat but creates an electrical path; a polymer insulates electrically but deforms, outgasses, or loses thermal performance; a coated metal adds interface and coating-failure risk.

The relevant question is therefore not whether alumina is “high temperature” or “thermally conductive” in isolation. It is whether the assembly needs a stable dielectric heat path under its actual temperature range, thermal cycling profile, voltage gradient, atmosphere, mechanical loads, joining method, and verification regime. In aerospace engineering solutions for thermal management, alumina becomes compelling when these requirements must be met by the same structural element.

Where alumina changes the design option set

Aerospace thermal problems often begin with a concentrated heat source: power semiconductors, RF devices, sensors, heaters, battery-adjacent electronics, optical assemblies, or electrically isolated mechanical interfaces. The heat must pass into a chassis, cold plate, radiator structure, or conductive housing. If the path also needs galvanic separation, a conventional metallic spreader requires an electrically insulating layer.

That layer can be a polymeric thermal interface material, anodic coating, mica-based sheet, deposited dielectric, or ceramic insert. Alumina is selected when a thin insulating layer must retain predictable thickness, dielectric integrity, and geometry despite elevated temperature and repeated cycling. It can function as a substrate, spacer, standoff, washer, insulator, feedthrough body, heat-spreader interface, or housing component rather than merely as a thermal barrier.

The material is particularly relevant under four intersecting conditions:

• Electrical isolation is mandatory. High-voltage power conversion, electrically isolated heaters, RF feedthrough regions, and mixed-potential assemblies cannot use a direct metal-to-metal heat path without introducing insulation elsewhere.
• The thermal interface experiences sustained temperature or thermal cycling beyond the reliable operating range of many polymeric solutions. The concern is not simply peak temperature; it is compression set, aging, modulus change, volatilization, and interface migration across the full mission and storage envelope.
• The component must preserve clearance, flatness, or preload geometry. Alumina’s stiffness and low creep compared with common polymers can stabilize a joint where a compliant insulator would alter bolt load or contact pressure.
• The service medium attacks or contaminates alternative materials. Ceramic parts can offer useful resistance to oxidation, many solvents, oils, and chemically active environments, subject to the specific grade and joint design.

A simple high-temperature requirement is not enough by itself. Nickel alloys, titanium alloys, stainless steels, and refractory metals may be better choices when electrical isolation is unnecessary, impact tolerance dominates, or the component must absorb large mechanical strain. Alumina solves a coupled thermal-electrical problem; it should not be introduced merely because the local temperature is high.

The thermal case: conductivity is only one part of thermal resistance

Dense alumina has moderate thermal conductivity for an electrical insulator. At room temperature, commonly used high-purity alumina grades are often in the broad range of roughly 20–35 W/m·K, with the actual value affected by purity, porosity, grain structure, orientation, and measurement method. This is far below copper or aluminium, but vastly above most unfilled polymeric insulators. Thermal conductivity also changes with temperature, so room-temperature catalogue figures cannot be inserted unchanged into a mission thermal model.

For a ceramic plate, bulk resistance is determined by thickness, area, and conductivity. In practice, however, contact resistance frequently controls the result. A very conductive alumina plate can perform poorly if it is placed between rough surfaces with insufficient flatness, low clamp load, trapped contamination, or an unsuitable interface material. Conversely, a thinner grade with well-controlled faces and an appropriate compliant interface may outperform a thicker nominally higher-conductivity part.

Thermal evaluation should therefore distinguish between:

• through-thickness resistance of the ceramic;
• spreading resistance from a small heat source into the ceramic;
• two interface resistances at the adjoining surfaces;
• the downstream resistance of the mounting structure, cold plate, or radiator path; and
• temperature-dependent power dissipation of the electronic device itself.

This distinction matters especially for power modules and RF components. A ceramic substrate may be excellent as a dielectric heat path yet insufficient as a lateral heat spreader if the source footprint is small and the heat must travel a long distance in-plane. The architecture may require a metallized alumina substrate bonded to a metal base, rather than a freestanding ceramic plate expected to perform every function.

Purity is not a shortcut for grade selection

“Alumina” covers a family of formulations rather than a single engineering material. Purity, additives, particle processing, densification route, and finishing specification all affect performance. A 96% alumina body and a high-purity 99% or 99.6% alumina body can differ materially in conductivity, dielectric behaviour, microstructure, mechanical consistency, metallization compatibility, and production cost.

Higher alumina purity can improve thermal conductivity and reduce the influence of glassy phases, but it does not automatically create the best part. A lower-purity formulation may offer more economical fabrication, a more suitable sintering response, or adequate performance for a low-voltage, moderate-temperature mounting feature. The selected grade must be linked to the failure mode being controlled.

For example, a high-voltage insulating substrate may prioritize dielectric breakdown behaviour, partial-discharge margin, edge geometry, and surface cleanliness over a small difference in bulk conductivity. A threaded or clamped ceramic standoff may prioritize flexural strength, surface finish, dimensional tolerance, and resistance to local bearing stress. A metallized part may require a grade and surface condition compatible with the chosen metallization and brazing process.

Datasheet values should also be treated carefully. Flexural strength is statistically distributed and depends on specimen geometry, surface condition, loading rate, and test method. A polished test bar does not represent a machined part with holes, chamfers, sharp corners, or a metallized region. Ceramic design needs an allowable-stress approach that recognizes flaw sensitivity, rather than a direct substitution of published “strength” for an assembly limit.

Thermal expansion is often the decisive constraint

Alumina’s coefficient of thermal expansion is lower than that of aluminium and higher than that of some specialized electronic ceramics. That position can be beneficial or problematic depending on the adjacent materials. A rigidly bonded alumina component joined to an aluminium heat sink will experience differential strain during temperature changes. If the bond line is thin and rigid, the resulting shear stress can accumulate at corners and edges. If the ceramic is constrained by screws, clips, or a housing, local bending may appear even where the average temperature looks acceptable.

This is why the thermal-management question must include the complete stack: semiconductor or heat source, metallization, solder or braze, ceramic, interface layer, heat sink, fasteners, and enclosure. A design can meet steady-state junction-temperature requirements yet fail after cycling because the joint architecture did not accommodate differential expansion.

Useful controls include compliant interface layers where the environment permits them, segmented ceramic geometries, controlled mounting patterns, generous edge radii, isolation of point loads, and bond-line designs that avoid transferring high peel stress into the ceramic. The choice between adhesive bonding, active-metal brazing, metallization plus soldering, mechanical clamping, and captured installation is not an assembly afterthought. It determines whether alumina remains a robust thermal solution or becomes the brittle element in a highly constrained stack.

When alumina is preferable to competing dielectric materials

Alumina is one of several dielectric thermal materials. The best alternative depends on the dominant constraint, not on a generic performance ranking.

The comparison with aluminium nitride deserves particular attention. Aluminium nitride can offer substantially higher thermal conductivity, but it should not be chosen solely from a conductivity chart. Its environmental stability, surface protection needs, joining route, supply controls, and qualification evidence may alter the system-level decision. If the heat path is interface-limited or downstream-limited, the conductivity premium may not produce a meaningful assembly benefit. Alumina is often the more rational option when the required heat flux is moderate and reliability depends more on robust insulation and manufacturable geometry than on maximum conductivity.

Failure modes that selection reviews should expose early

The most serious alumina failures are frequently architectural rather than material defects. Fracture may result from a mounting screw tightened against an unprotected ceramic surface, a poorly supported overhang, a nonparallel clamping arrangement, or a contact feature that concentrates load at one point. Edge chips created during machining or handling can act as crack initiators. A ceramic washer is not a metal washer with a different dielectric constant; the bearing area, washer thickness, counterbore shape, preload range, and assembly sequence all matter.

Electrical failure can also be external to the ceramic bulk. Surface flashover, contamination, moisture films, metallization defects, insufficient creepage distance, and sharp conductive edges may govern the actual voltage withstand capability. A bulk dielectric-strength figure does not certify an assembled component. High-altitude operating conditions further complicate insulation design because reduced ambient pressure changes discharge behaviour. The relevant assessment must reflect the installed geometry and operating envelope.

Where metallization is required, the interface becomes a separate qualification subject. Metallized alumina supports soldering, brazing, and electrical termination, but adhesion, wetting, plating integrity, corrosion protection, and thermal-cycle fatigue must be assessed as a system. A strong ceramic body does not compensate for a poorly specified metallization stack or an incompatible braze alloy.

Evidence required before release

Material selection should be converted into a controlled verification plan rather than concluded from a supplier datasheet. The part definition needs the alumina composition or designated grade, density requirement where relevant, dimensions and tolerances, surface-finish limits, edge treatment, allowable cosmetic defects, and any metallized-area requirements. “Alumina ceramic” is not a sufficient procurement description for a mission-critical part.

Lot traceability and process consistency matter because ceramic properties are influenced by powder preparation, sintering, machining, and inspection. Qualification evidence should be tied to the delivered configuration: the final geometry, finished surfaces, joints, and interfaces. Where a flight or mission program imposes specific material-control rules, those requirements take precedence over generic product data.

Relevant verification may include dimensional inspection, flatness measurement, density or porosity control, dielectric testing in representative geometry, insulation-resistance testing, thermal cycling, vibration or shock testing, and destructive evaluation of joints where appropriate. Outgassing evaluation may be necessary for vacuum-sensitive hardware; ASTM E595 is widely used as a screening method for material outgassing, but program-specific acceptance limits and conditioning requirements must govern the decision. Similarly, AS9100 certification can provide evidence of an aerospace-oriented quality-management system, but it does not qualify a specific alumina grade, joint, or flight configuration.

The release decision should also examine what happens after a process change. A different sintering location, machining subcontractor, metallization chemistry, or plating source can alter characteristics that are invisible in a basic certificate of conformance. Change notification, retained records, and an agreed requalification threshold are as important as the initial material selection where repeatability is critical.

A practical threshold for choosing alumina

Alumina is justified when the design needs a rigid and durable dielectric member that also carries useful heat, survives the thermal and chemical environment, and can be integrated without unacceptable stress from expansion mismatch. It is especially effective when a polymeric insulator creates a reliability concern and a metal solution would require a more complex or less stable insulation scheme.

It is a poor fit when the component must tolerate substantial flexure, impact, uncontrolled assembly preload, or severe differential movement without a compliant interface. It may also be unnecessarily expensive or restrictive where ordinary electrical insulation and low heat flux make a qualified polymeric construction adequate.

The strongest selection decision is therefore expressed at assembly level: define the heat path, electrical isolation requirement, mechanical constraint, atmosphere, joining method, and qualification evidence together. Once those conditions are explicit, alumina ceramics can be evaluated as a controlled engineering solution rather than treated as a generic high-temperature material.
