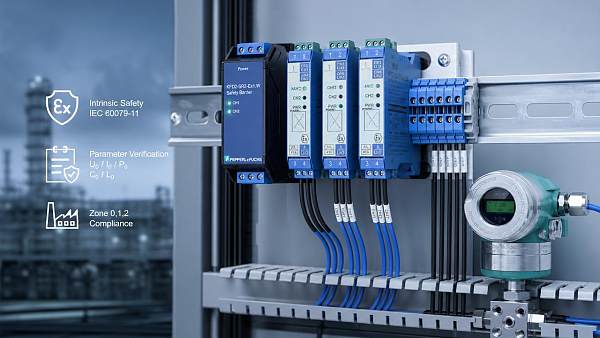

Intrinsically Safe Electrical Parameters That Prevent Compliance Gaps

Understanding intrinsically safe electrical parameters is essential for preventing costly compliance gaps in hazardous-area operations. For information researchers comparing ATEX, IECEx, UL, and broader industrial safety requirements, these parameters reveal how voltage, current, capacitance, and inductance limits directly affect equipment selection, certification, and risk control. This introduction outlines why precise parameter interpretation matters across complex, high-consequence engineering environments.

Why do intrinsically safe electrical parameters decide compliance outcomes?

In hazardous locations, a compliance gap rarely begins with a dramatic failure. More often, it starts with a small mismatch between field device data and barrier or isolator limits. Intrinsically safe electrical parameters define the allowable energy relationships that prevent ignition under fault conditions. When these figures are misunderstood, even certified components can become non-compliant as a system.

For information researchers in industrial procurement, engineering support, or safety benchmarking, the issue is not simply whether a device carries an approval mark. The real question is whether the interconnected loop remains safe when cable capacitance, field wiring inductance, ambient conditions, and entity parameters are assessed together. This is where intrinsically safe electrical parameters move from a datasheet detail to a project risk driver.

G-CSE approaches this topic from a resilience engineering perspective. Across fire and explosion protection, filtration skids, connection systems, advanced materials, and extreme-environment robotics, the organization tracks where specification assumptions diverge from operational reality. That multidisciplinary view matters because hazardous-area compliance is often influenced by adjacent equipment, installation practice, and regional certification pathways rather than by a single instrument alone.

• A certified field device may still fail loop validation if its input capacitance or inductance exceeds what the associated apparatus allows.
• A design approved under one framework may require additional review when transferred across ATEX, IECEx, or UL-oriented project documentation.
• Late discovery of parameter mismatches can delay commissioning, trigger redesign, or force substitution of barriers, cables, or sensors.

What are the core intrinsically safe electrical parameters that researchers must verify?

The most important intrinsically safe electrical parameters usually appear as output values on the associated apparatus and input values on the field device. While notation can vary by manufacturer and certification scheme, the logic is consistent: the source must not exceed what the connected equipment can safely accept, and the total connected cable effects must stay within permitted limits.

Primary parameter groups

• Voltage: Often expressed as maximum open-circuit voltage or maximum input voltage. Excess voltage can increase ignition risk under fault conditions.
• Current: Usually stated as maximum short-circuit current or maximum input current. This affects available ignition energy and fault behavior.
• Power: Maximum output or input power can be the decisive figure where voltage and current alone do not tell the full safety story.
• Capacitance: Internal device capacitance plus cable capacitance must remain below the allowed external capacitance of the source.
• Inductance: Internal device inductance plus cable inductance must remain below the allowed external inductance of the source.

The table below summarizes how intrinsically safe electrical parameters are commonly interpreted in system review. This kind of cross-check is especially useful when comparing instrumentation packages for process plants, semiconductor support systems, aerospace test stands, or energy infrastructure where multiple standards and supplier documents intersect.

Researchers should note that passing one parameter check does not compensate for another failing. A loop with acceptable voltage but excessive capacitance is still problematic. The practical value of intrinsically safe electrical parameters lies in evaluating the complete interconnection, not isolated line items.

Where do compliance gaps usually appear in real industrial projects?

Compliance gaps tend to emerge at interfaces: between purchasing and engineering, between local and global standards, and between certified devices from different vendors. In high-consequence sectors such as energy terminals, clean manufacturing support infrastructure, and aerospace ground systems, the documentation chain can be fragmented. The more stakeholders involved, the easier it becomes to overlook intrinsically safe electrical parameters during substitution or package integration.

Common gap scenarios

1. A field instrument is replaced with a newer model carrying similar functional specifications, but different Ci or Li values. The old barrier remains in place, creating a hidden mismatch.
2. A skid integrator assumes that equipment marked for one certification pathway transfers directly into another region’s approval dossier without a fresh entity parameter review.
3. Long cable runs or bundled wiring add capacitance and inductance beyond what the initial panel design considered.
4. Procurement teams compare price and lead time but do not request loop-level compatibility evidence from suppliers.

This is one reason G-CSE’s benchmarking model is useful to researchers. It does not treat compliance as a label-checking exercise. Instead, it connects material, equipment, environmental, and standards data so decision-makers can identify whether a component is suitable in context, not just in isolation. In some comparative research workflows, reference materials or placeholder listings such as 无 may appear in the evidence chain, but the decisive factor remains technical traceability and parameter validation.

ATEX, IECEx, and UL: what should information researchers compare beyond the label?

ATEX, IECEx, and UL-related hazardous-location frameworks overlap in purpose but differ in how products are documented, accepted, and applied within project governance. For a researcher, the mistake is to compare only the certificate headline. Intrinsically safe electrical parameters must be read together with installation conditions, area classification assumptions, temperature limits, and entity or system documentation practices.

The following comparison table helps structure desk research when evaluating cross-border sourcing or multinational project specifications.

The key lesson is simple: equivalent intent does not mean interchangeable documentation. Researchers comparing multi-region projects should build a review matrix that includes entity parameters, control drawings, hazardous-area classification basis, and accepted installation standards from the start.

How should procurement teams evaluate intrinsically safe electrical parameters before purchase?

For procurement teams supporting hazardous-area assets, a strong buying decision goes beyond unit price and certificate availability. The practical objective is to avoid rework. That means converting intrinsically safe electrical parameters into a pre-award checklist that purchasing, engineering, and compliance staff can all use.

Pre-purchase review checklist

• Request source-side and device-side entity parameters in the same document set, not in separate files that may drift during revision control.
• Confirm whether cable capacitance and inductance have been included in the compatibility calculation for the intended routing length.
• Check whether ambient temperature, gas group, and installation arrangement affect allowed values or certification conditions.
• Ask whether substitution is anticipated during lifecycle maintenance; if so, define acceptable parameter windows in procurement specifications.
• Verify which authority, end user, or EPC requires ATEX, IECEx, UL, or another framework in final turnover documents.

This evaluation discipline is particularly relevant in integrated projects where fire and explosion protection systems interact with filtration units, robotic service platforms, or specialized connection hardware. G-CSE’s value in such environments lies in connecting procurement criteria with standards interpretation and technical benchmarking, reducing the risk that teams approve components that fit the budget but not the final compliance file.

Which applications make parameter interpretation more difficult?

Not all hazardous-area projects carry the same complexity. Intrinsically safe electrical parameters become more difficult to interpret when systems are distributed, exposed to unusual environmental stress, or assembled from multiple specialist suppliers. That is common across the advanced industrial domains tracked by G-CSE.

Higher-complexity application scenarios

These scenarios show why generic compliance assumptions fail. The more complex the environment, the more valuable a structured repository of benchmarked technical and regulatory information becomes. That is where multidisciplinary intelligence has practical procurement value, not just academic interest.

What are the most common misconceptions about intrinsically safe electrical parameters?

“The certificate means the whole loop is automatically compliant.”

A certificate usually confirms that the individual apparatus was assessed under defined conditions. It does not remove the need to verify how that apparatus behaves when connected to a real barrier, real cable, and real field device. Intrinsically safe electrical parameters are the bridge between component approval and system suitability.

“Voltage and current are enough; capacitance and inductance are minor details.”

This is a frequent source of avoidable nonconformity. In short runs, the issue may stay hidden. In larger installations, cable effects can become decisive. Ignoring Co, Lo, Ci, and Li values can invalidate an otherwise sensible selection.

“A similar replacement model is acceptable if the function is identical.”

Functional equivalence does not guarantee intrinsic safety equivalence. Researchers should compare entity parameters, certification conditions, and installation notes before approving substitutions. A lifecycle maintenance strategy should include pre-approved alternatives where possible.

“Cross-border projects can standardize later.”

Late harmonization often increases cost. If ATEX, IECEx, and UL-related expectations are not mapped early, documentation gaps can surface after equipment purchase. The result may be extra testing, re-documentation, or delayed startup.

FAQ: what do researchers and buyers ask most often?

How do I verify intrinsically safe electrical parameters quickly during supplier comparison?

Start with a one-page matrix listing Uo, Io, Po, Co, and Lo for the source, then Ui, Ii, Pi, Ci, and Li for the field device. Add estimated cable capacitance and inductance for the proposed route. If the supplier cannot provide these values clearly, treat that as a documentation risk, not just a formatting inconvenience.

Which projects are most vulnerable to compliance gaps?

Projects with long wiring runs, multi-vendor skid integration, international delivery scope, or high maintenance substitution rates face the greatest risk. Energy infrastructure, advanced manufacturing support systems, and remote inspection platforms are typical examples because they combine technical complexity with strict documentation needs.

What should procurement ask for besides the certificate?

Ask for control drawings, entity parameter tables, applicable installation notes, hazardous-area assumptions, and any regional approval limitations. Also request clarity on revision history so buyers do not compare obsolete parameter sheets against current devices.

Can commercial intelligence really help with intrinsic safety decisions?

Yes, because technical compliance is often affected by sourcing strategy and project timing. When teams know which suppliers are changing models, where regional rules are shifting, or which materials and components may face lead-time pressure, they can avoid rushed substitutions that create parameter mismatches. In research workflows, even a generic reference such as 无 is less important than whether the supporting data package is complete and current.

Why choose us for hazardous-area parameter research and compliance support?

G-CSE supports decision-makers who cannot afford vague answers. Our strength is not limited to a single product line or a narrow certification view. We connect hazardous-area safety logic with broader engineering realities across industrial fire and explosion protection, advanced filtration systems, high-performance connection technologies, specialty materials, and robotics for extreme environments.

That means we can help information researchers, procurement leaders, and technical evaluators interpret intrinsically safe electrical parameters in relation to actual deployment conditions, supplier comparability, and cross-border compliance expectations. Instead of stopping at a basic standard summary, we focus on usable decision inputs.

What you can consult us about

• Parameter confirmation for barrier, isolator, transmitter, sensor, and field device combinations
• Selection guidance when comparing ATEX, IECEx, UL, or mixed regional project requirements
• Review of substitution risk during maintenance, retrofit, or global sourcing transitions
• Support for lead-time, documentation, and compliance trade-off decisions before purchase order release
• Technical benchmarking for extreme-environment systems where intrinsic safety interacts with broader resilience engineering constraints

If your team is comparing suppliers, validating entity parameters, planning a hazardous-area retrofit, or trying to avoid compliance gaps before tender close, contact us with the loop architecture, target standard, installation scenario, and timeline. We can support parameter review, selection logic, certification requirement analysis, delivery-risk screening, and quotation-stage clarification with a technical and regulatory perspective suited to critical industrial assets.
