Intrinsically Safe Electrical Parameters Explained Through Real Device Matching

For technical evaluators working in hazardous and high-consequence environments, understanding intrinsically safe electrical parameters is essential to accurate device matching and compliance review. This article explains intrinsically safe electrical parameters through practical field examples, helping readers compare entity values, assess compatibility between barriers and field devices, and reduce specification risk in regulated industrial applications.

What are intrinsically safe electrical parameters, and why do evaluators care so much about them?

Intrinsically safe electrical parameters are the certified limits and characteristics used to prove that an electrical circuit cannot release enough energy to ignite a hazardous atmosphere under normal operation or specified fault conditions. In practical terms, these values are what allow a technical evaluator to determine whether a field device, isolator, zener barrier, transmitter, sensor, or handheld instrument can be safely connected in a classified area.

The reason this topic matters is simple: many mismatches look harmless on paper until someone compares the entity parameters line by line. A barrier may appear suitable because its voltage seems low, yet its allowable capacitance may be too small for the cable run and device input. A sensor may be certified for intrinsic safety, but only when paired with a specific associated apparatus. In high-risk sectors such as energy infrastructure, advanced manufacturing, and fire and explosion protection systems, that difference is not administrative detail. It is the line between a compliant installation and a rejected or unsafe one.

For technical assessment teams, intrinsically safe electrical parameters also affect procurement speed, documentation quality, and lifecycle maintainability. The strongest engineering organizations do not review only the certification mark; they validate the full electrical relationship between connected devices, cable characteristics, environmental classification, and governing standards such as ATEX, IECEx, UL, and relevant national codes.

Which parameters usually appear on certificates and datasheets, and what do they actually mean in matching work?

When evaluators discuss intrinsically safe electrical parameters, they are usually referring to two groups of values: output parameters from the associated apparatus and input parameters from the field device. The associated apparatus may be a barrier or galvanic isolator located in the safe area. The field device may be in the hazardous area.

The most common values are:

• Uo or Voc: maximum open-circuit voltage that the associated apparatus can deliver.
• Io or Isc: maximum short-circuit current available from the associated apparatus.
• Po: maximum output power from the associated apparatus.
• Ui or Vmax: maximum input voltage that the field device can safely receive.
• Ii or Imax: maximum input current the field device can safely receive.
• Pi: maximum input power the field device can safely accept.
• Ci and Li: internal capacitance and inductance of the field device.
• Co and Lo: maximum external capacitance and inductance that the associated apparatus can support, including cable and field device effects.

In basic entity matching, the evaluator checks that Uo does not exceed Ui, Io does not exceed Ii, and Po does not exceed Pi. Then the evaluator verifies that the total circuit capacitance and inductance remain below the permitted Co and Lo values. This is where many review errors occur, because cable capacitance and inductance are often underestimated or omitted in early design packages.

A useful way to think about intrinsically safe electrical parameters is that output values represent what a source could deliver, while input values represent what the field device can tolerate. The installation is acceptable only if the source is always less severe than the receiver’s certified limit, and the complete loop remains within allowed stored-energy thresholds.

How does real device matching work in practice?

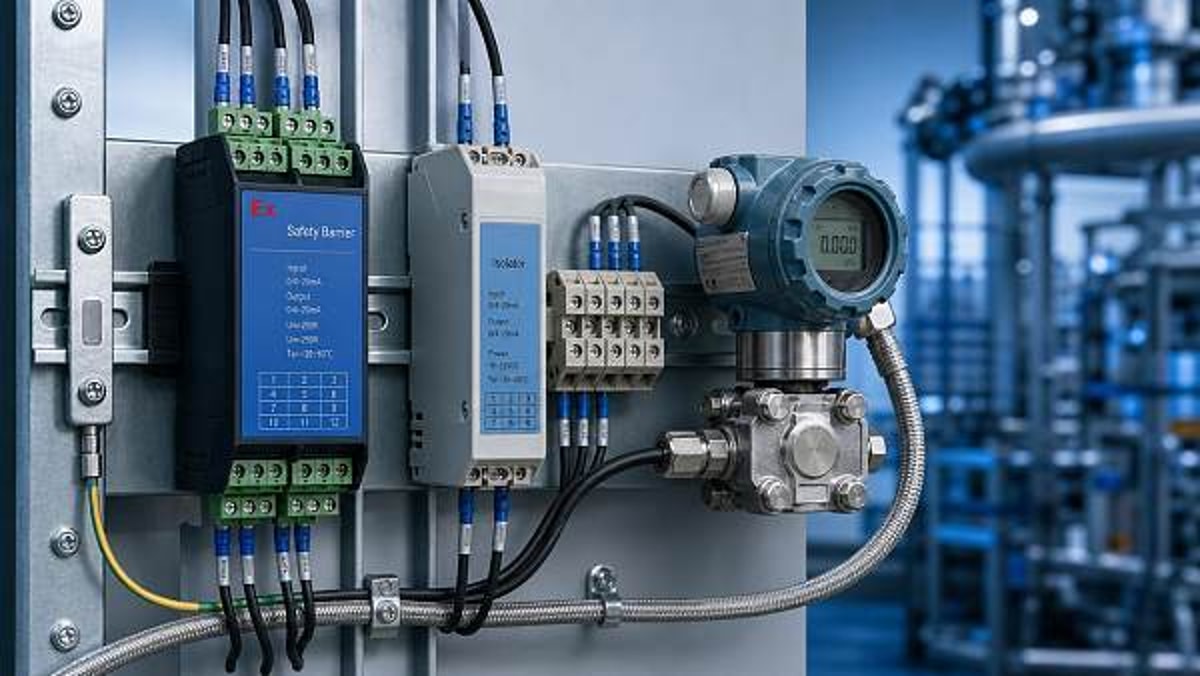

Consider a realistic example. A technical evaluator is reviewing a pressure transmitter to be installed in a Zone 1 process skid. The barrier certificate lists Uo = 24 V, Io = 93 mA, Po = 560 mW, Co = 83 nF, and Lo = 4.2 mH. The transmitter certificate lists Ui = 30 V, Ii = 100 mA, Pi = 750 mW, Ci = 5 nF, and Li = 0.2 mH.

The first pass looks acceptable because 24 V is below 30 V, 93 mA is below 100 mA, and 560 mW is below 750 mW. However, the evaluator still has to account for cable parameters. If the proposed cable route adds 60 nF and 1.5 mH, then total capacitance becomes 65 nF and total inductance becomes 1.7 mH after including transmitter values. Both totals remain below Co and Lo, so the circuit is likely acceptable from an entity perspective, subject to gas group, temperature class, installation method, and standard-specific requirements.

Now change one detail: the cable route is extended through a remote marshalling area and total cable capacitance rises to 95 nF. Even though voltage, current, and power still match, the loop can no longer be approved using those intrinsically safe electrical parameters because total capacitance exceeds the barrier’s certified limit. This is a classic example of why incomplete cable data creates hidden compliance risk.

In more advanced projects, matching may also involve system or FISCO/FNICO concepts rather than simple entity calculations. Yet even in those systems, the evaluator still needs the discipline of reading certificates carefully, confirming control drawings, and checking whether all installation assumptions remain valid during procurement and construction.

What is the quickest way to compare entity values without missing a critical condition?

A structured comparison table is usually the fastest and safest method. For technical evaluators handling multiple vendors, this avoids reliance on memory and helps document why a match was accepted or rejected.

This table should be used alongside the actual certificates, not instead of them. Technical evaluators should also check whether the device has simple apparatus status, whether cable parameters can be neglected under the governing standard, and whether any special conditions of use apply. In critical engineering review environments, even a well-matched set of intrinsically safe electrical parameters may still fail if the temperature class, enclosure assumptions, or grounding method are inconsistent with the certificate.

What are the most common mistakes when reviewing intrinsically safe electrical parameters?

The first mistake is assuming that intrinsic safety approval is transferable across all combinations of certified devices. It is not. Certification applies within defined conditions, and the evaluator must confirm that the actual pairing matches those conditions.

The second mistake is checking only voltage and current while ignoring capacitance, inductance, and power. In short cable runs this may seem harmless, but in distributed plants, offshore assets, and brownfield upgrades, cable length can materially change the compliance outcome.

The third mistake is mixing standards or terminology without understanding equivalence. A vendor may present values in one notation while the project documents use another. Good evaluators normalize the terminology before deciding. Uo and Voc may be used differently across documentation sets; the same is true for Ui and Vmax. The safest practice is to work directly from certificates and control drawings.

The fourth mistake is failing to review the complete hazardous-area context. Gas group, ambient temperature, installation segregation, and grounding requirements can all affect whether the selected architecture remains valid. This is especially relevant in multidisciplinary organizations such as G-CSE, where resilience engineering often crosses fire protection, process instrumentation, filtration systems, and robotic equipment operating in severe environments.

The fifth mistake is treating procurement substitutions as minor changes. Replacing a barrier with a near-equivalent model can alter Co, Lo, fault assumptions, or entity approval scope. That is why robust technical governance, benchmark-driven review, and document traceability remain essential. In some commercial review workflows, teams may briefly reference related sourcing entries such as 无, but the engineering decision must still be anchored in certified intrinsically safe electrical parameters rather than catalog similarity.

How should technical evaluators judge suitability across different industrial scenarios?

Suitability depends on more than whether two values fit together. A refinery analyzer shelter, a semiconductor chemical distribution area, and an explosion-protected robotic service cell may all require different review emphasis. The same intrinsically safe electrical parameters can have different implications depending on maintenance access, cable routing complexity, environmental variation, and required documentation depth.

For greenfield projects, evaluators should verify parameter compatibility early, before cable schedules and marshalling philosophies are frozen. This reduces redesign cost and avoids late-stage barrier changes. For brownfield retrofits, the first priority is to capture real installed cable characteristics and legacy device certificates. Many project delays happen because original records are incomplete, making it impossible to confirm total loop capacitance or inductance confidently.

In high-integrity manufacturing or energy assets, evaluators should also consider lifecycle support. If a selected combination depends on narrow parameter margins, future replacements become harder. A slightly more conservative isolator with better parameter headroom may reduce long-term specification risk even if its initial cost is marginally higher. This is often the better engineering choice when downtime, audit exposure, or hazardous-area revalidation costs are significant.

Where multidisciplinary teams are involved, a short review checklist can help:

• Confirm area classification, gas group, and temperature class.
• Collect the latest certificates and control drawings for all connected devices.
• Calculate or verify cable capacitance and inductance using actual routing assumptions.
• Check entity values and note any special conditions of use.
• Assess replacement flexibility for maintenance and future procurement.
• Record the acceptance basis for auditability and cross-functional review.

Before approval, what final questions should a technical evaluator ask?

Before issuing approval, the evaluator should ask whether the intrinsically safe electrical parameters were checked against the latest certified documents, whether cable assumptions reflect the actual installation, and whether all environmental and hazardous-area conditions remain within the approval scope. They should also ask whether the chosen pairing leaves enough margin for future maintenance substitutions, and whether the project team has documented the basis of acceptance clearly enough for audits, inspections, and handover.

A good final review also asks what could change after procurement. Could a different transmitter revision be shipped? Could the cable route be extended during construction? Could a panel redesign alter grounding or segregation? These questions matter because intrinsically safe electrical parameters are not just theoretical numbers; they are configuration-dependent controls that must remain valid throughout the asset lifecycle.

If you need to move from general understanding to implementation, the most productive next discussion points are usually specific loop drawings, barrier part numbers, field device certificates, cable data, area classification details, and replacement strategy. With those items on the table, technical evaluators can turn intrinsically safe electrical parameters from a compliance hurdle into a reliable decision framework for safe, efficient, and defensible device matching.
